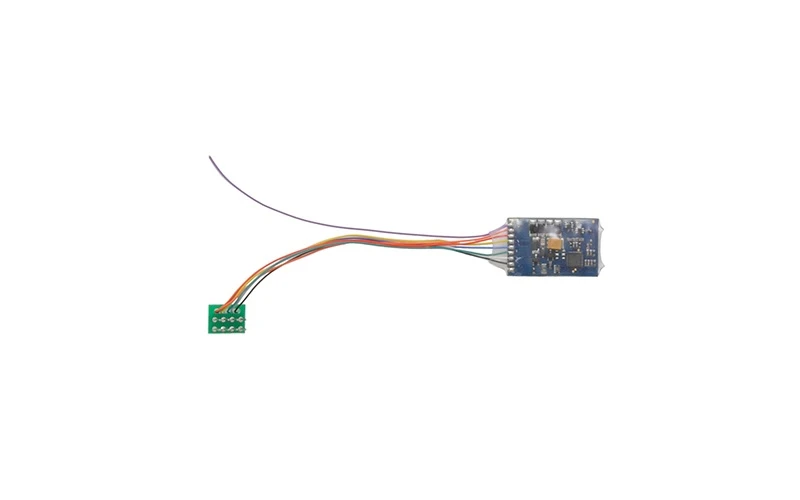

Bachmann 36-566 0.9amp 4 Function 8 Pin DCC Decoder “featuring RailComPlus”

Bachmann 36-566 E-Z Command 8-Pin Decoder 4-Function Featuring RailComPlus

Operational Modes:-
NMRA/DCC with 14,28, 128 speed steps
2-digit (short) and 4-digit (long) addresses
Analog DC operation (de-selectable)
Automatic recognition of operational mode and DCC speed step selection
Supports Lenz LG100 braking sections

Throttle:
Runs DC and coreless motors
0.9A continuous load
Silent and safe 20.00kHz pulse width frequency motor regulation
Motor output overload protection: Back EMF (de-selectable)

Function Outputs:
4 powered outputs with overload protection
250mA load per output
500mA total load of all function outputs
Shunting speed and momentum key selectable

Programming:
DCC Servicemode & DCC POM (programming on Main)

Features:
RailCom Feedback system. RailCom Plus automatic registration

Interface:
NEM652 (8-pin)

Dimensions:
25.5mm x 15.5mm x 4.5mm
