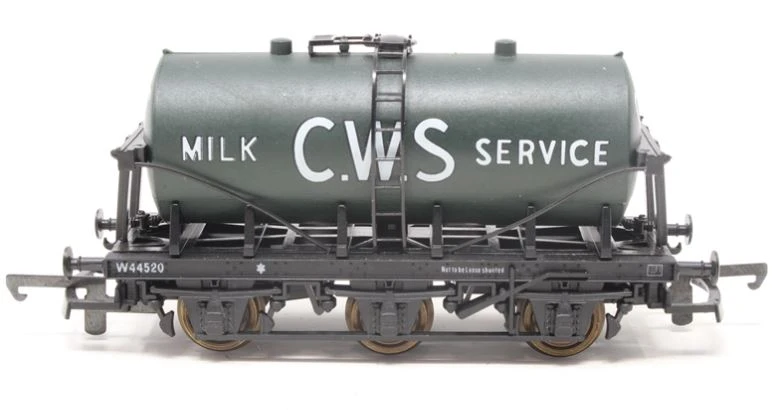

LIMA 305644A2 Milk Tank Wagon CWS W44520

Milk tank wagons were a common sight on railways in the United Kingdom from the early 1930s to the late 1960s. Introduced to transport raw milk from remote dairy farms to central creameries, milk trains were the last railway-based system before the move to road transport.



Post grouping in 1923, of the 282,000,000 imperial gallons  of milk transported by rail by all four national railways companies,^[1] the Great Western Railway had the largest share of milk traffic, serving the rural and highly agricultural West of England and South Wales; followed by the LMS which collected from Cumbria and North Wales; the Southern particularly from the Somerset and Dorset Railway; and finally the LNER from East Anglia.^[1]

Often, the milk was delivered direct from the farmer to the local railway station in milk churns. So to remove the need for moving unprocessed milk from one container to another, and hence potential cross contamination or need to install hygienic washing facilities, the decision was taken to transport the milk churns. From the 1880s, the GWR had introduced the popular GWR Siphon series of passenger carriage chassis-based high-speed and ventilated enclosed wagons, but with volumes rising and production systems changing, the transport system had to change.



Under the milk churn system, the steel churn had been owned either by the farmer or the dairy, to which was attached a paper delivery note for the railway. The three participants hence agreed to adopt the same ownership system for the new milk tank wagons, whereby the chassis was supplied by the railway company, while the carrying tank was supplied by the dairy.^[1]

The first designs were introduced by the GWR and the LMS in 1927, followed a year later by the LNER. The SR initially experimented with 2,000-imperial-gallon (9,100 l; 2,400 US gal) roll-on/roll-off two or three-axled road trailers, which after being towed to each farm by a dairy company or SR lorry, could be taken to the railway station and then strapped down on a standard railway flat wagon. 60 of these road tankers were built, but although the system survived in some areas, by 1931 the SR had abandoned marketing the system and moved inline with the other railway companies, under pressure from the big dairies. The GWR later trialled the idea, and some tanks were redeployed to the Western Region of British Railways on nationalisation in 1948.^[1]





Preserved United Dairies three-axle Milk Tank Wagon at the Bluebell Railway, based on an SR chassis

The initial milk tank wagon designs were based on a 12-foot (3.7 m) two axle railway wagon chassis. There was a ladder either side to allow filling via an industrial rubber hose into a flip-top dome casing, while a steel pipe exited at the bottom of the tank with a tap either end of the chassis between the buffer beams for extraction. All designs unlike typical goods wagons used vacuum braking, due to their high-speed deployment. The various designs that railway companies used followed a common pattern, but even at this early stage differences appeared making them easy to spot. While GWR designs used flat-strip metal as bracing, LMS and SR designs used rounded steel bracing. SR designs had additional V-shaped support bracing either end, and had additional wooden packing behind each of the buffers. LMS designs had a catwalk around the filling dome.^[1]

The first tanks were labelled externally as being glass-lined (they were actually vitreous enamel), meaning that the wagons themselves were unauthorised for loose or hump shunting, a reminder of which was applied in large capital letters to the chassis. Early tank design had no baffles, meaning that the milk self-churned during the journey, and made the wagon highly unstable. After the required improvement in milk quality was not gained, and a number of derailment accidents, 13 feet (4.0 m) three-axled six-wheel wagons were introduce from 1931, and baffles became standard practise.^[1] The last of the two-axle design were withdrawn pre-World War II, while three-axle designs continued in production under British Railways into the early 1950s, but now with stainless steel linings.^[1]

Later, limited production twin-tank designs were introduced, all based on triple-axle chassis. More common on the GWR, they were also used by the SR for transport of dairy products from the Channel Islands that came in via Southampton Docks. Twin-tanks allowed the easy collection from smaller dairies of both premium gold-top, as well as other silver-top products.^[1]

In total, across all four railway companies, some 600 three-axle milk tank wagons were produced.^[1]
